产品参数

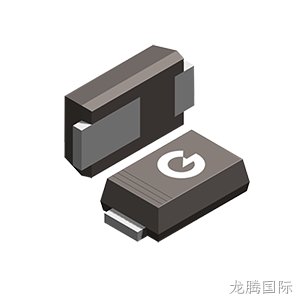

- Package: SOD-323HE
- AEC Qualified: NO
- Pb Free: YES
- Halide Free: YES
- REACH: YES
- RoHS: YES
- Marketing Status: not for new design
- Configuration: Single
- VRRM(V) max.: 40
- IF(A) max.: 1
- VF (V) max: 0.55
- IFSM(A) max.: 25
- IR(uA) max.: 100
- TJ(°C) max.: 125
- TJ(°C) min.: -55
- ECCN(US): EAR99
包装 (编带盘装)
| Package Name | Carrier Dimensions | Reel Dimensions | Inner Container | Outer Container | ||||||
| Tape Size(mm) | Reel Size(mm) | Quanity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | |
| SOD-323HE | 8 | 178 | 4 | 0.1005 | 180x190x80 | 24 | 0.355 | 440x440x230 | 240 | 4.62 |
