产品参数

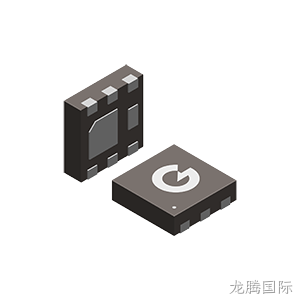

- Package: DFN2020-6L
- AEC Qualified: NO
- Pb Free: YES
- Halide Free: YES
- REACH: YES
- RoHS: YES
- Marketing Status: Active
- Configuration: Single
- Channel Polarity: P
- PD(W) Max.: 2.5
- V(BR)DSS(V) Min.: -15
- VGS(V) Max.: ±12
- ID(A) Max.: -8
- IGSS(uA) Max.: ±0.1
- VGS(th)(V) Max.: -1
- RDS(on)(mΩ)@ 4.5V Typ.: 15.5
- RDS(on)(mΩ)@ 4.5V Max.: 22
- RDS(on)(mΩ)@ 2.5V Typ.: 20
- RDS(on)(mΩ)@ 2.5V Max.: 28
- ESD: /
- TJ(°C) max.: 150
- TJ(°C) min.: -55
- ECCN(US): EAR99
包装 (编带盘装)
| Package Name | Carrier Dimensions | Reel Dimensions | Inner Container | Outer Container | ||||||
| Tape Size(mm) | Reel Size(mm) | Quanity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | |
| DFN2020-6L | 8 | 178 | 3 | 0.088 | 210x210x200 | 45 | 1.52 | 440x440x230 | 180 | 7.11 |
